Technical Principles

IZI-flow (easy-flow) is a compact reliable valve, where the water flow is activated by a diaphragm.
By depressing the pedal, pilot water is activated.
The pilot water, in line pressure, activates the diaphragm to open or to shut off the main water flow.
A special arrangement of the pilot water path enables the valve to function under a wide range of pressures – from 0.5 bar till 12.0 bar.
If required, it is possible to increase the pressure range.
There is total separation between the water flow element and water flow control element of the system. This feature ensures that there is no risk of leakage.
The above mentioned technology makes it possible to keep the valve dimensions small (Single Valve: 5x4x6 cm, Double Valve: 8x4x6 cm).

The activation of water inflow by a base board pedal is remarkably elegant. With two fixing options this ingenious device can be adapted to nearly every kickboard.
The pedal housing is located behind the kickboard on the floor tilt-resistant when fixed with two thread rods on the bottom of the cabinet.
According to the wall thickness of the panel, several options exist to screw the stainless steel pedal disc to the lever.
For additional mounting tips, we are more than pleased to provide our advice.

IZI-flow (easy-flow) is comfortably connected between the angle valve and the tap, by simply applying a few hand movements.

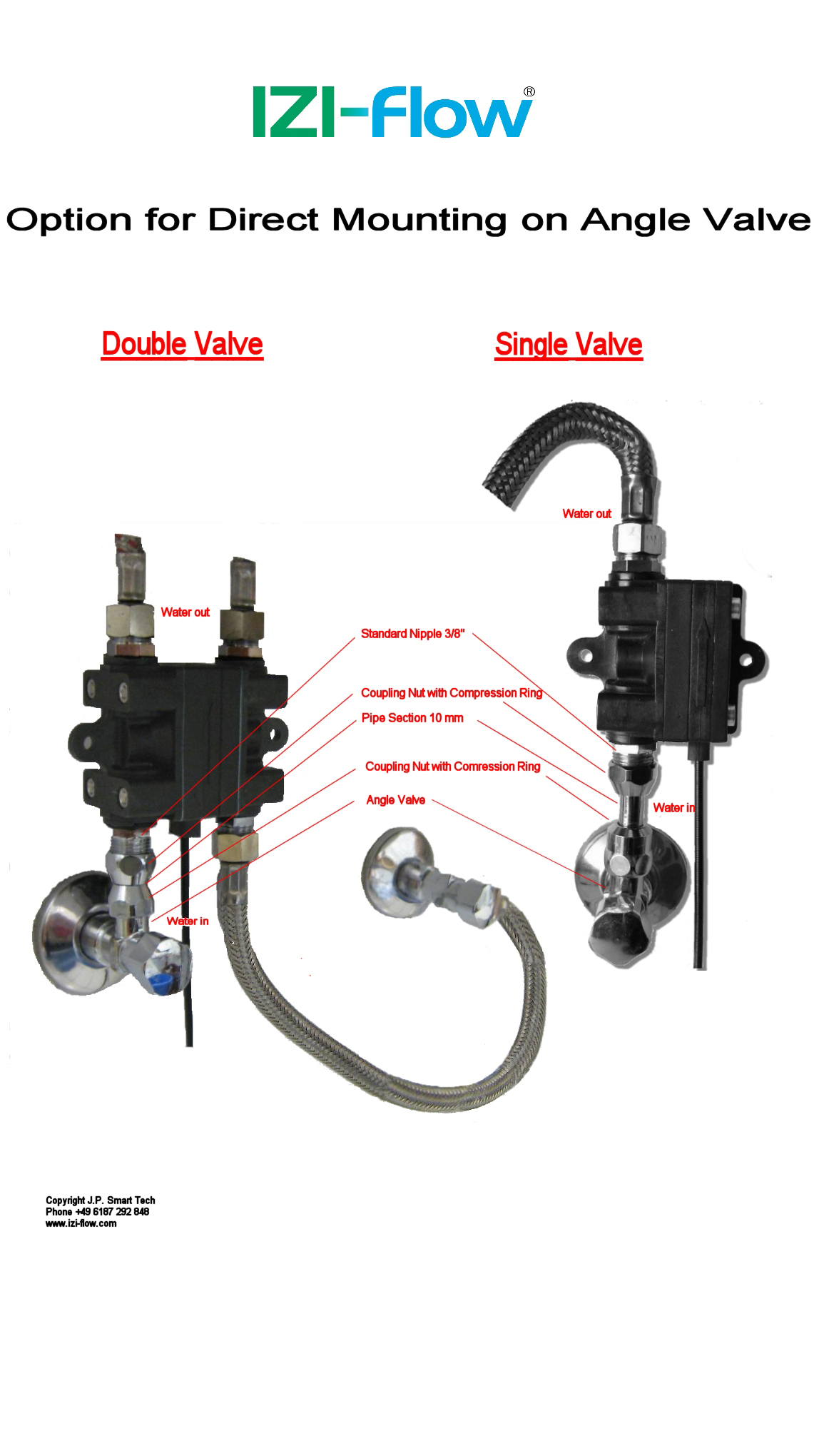

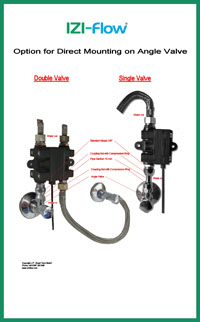

The IZI-flow® valve may be fixed to the wall, by the supplied fitting or by mounting the valve directly on the angle valve. Even without fixing, the IZI-flow® valve is functionally reliable. The only parameter to consider is the water flow direction.
A stand-alone mouse-pedal or a base board pedal mechanically activates the tap’s water inflow.
IZI-flow® is operable when applied to normal water pressure systems, as well as in low water pressure systems, for example, in hot water tanks. Our valve is operable in a water pressures range of 0.5 bar to 12.0 bar.

A couple of mounting options are shown on this page.
